1.6T Ethernet Verification IP

Truechip's 1.6T Ethernet Verification IP provides an effective & efficient way to verify the components interfacing with Ethernet interface of an IP or SoC. Truechip's 1.6T Ethernet VIP is compliant with IEEE standard 802.3-2018 CL119 & 802.3dj. This VIP is light weight with easy plug-and-play interface so that there is no hit on the design cycle time.

Key Benefits

• Available in native System Verilog (UVM/OVM/ VMM) and Verilog
• Unique development methodology to ensure the highest levels of quality
• Availability of Compliance & Regression Test Suites
• 24X5 customer support
• Unique and customizable licensing models
• Exhaustive set of assertions and coverage points with connectivity example for all the components
• Consistency of interface, installation, operation, and documentation across all our VIPs
• Provide complete solution and easy integration in IP and SoC environment

Features

• Supports Standard 1.6T MII Interface.
• Supports two 800 Gb/s PCSs with Reed Solomon Encoding (544,514).
• Supports 16 PCS lanes of 106.25 Gb/s.
• PMA supports [1:1] Mux & [2:1] Mux.
• Supports all possible widths for PCS to Serdes interface.
• Supports Full Duplex operation.
• Supports all types of error injection and detection.
• On-the-fly protocol checking using protocol check functions.
• Provides configuration in monitor for both error injection and normal test cases.
• Provide scoreboard for endpoint verification.
• Support clock and data recovery for all Phy sub layers.
• Support for generation of all command frames defined in the specification.
• Callback support in layers to provide user control.
• Provides static as well as dynamic error injection capability.
• Graphical Protocol layer analyzer shows Ethernet data for easy debug

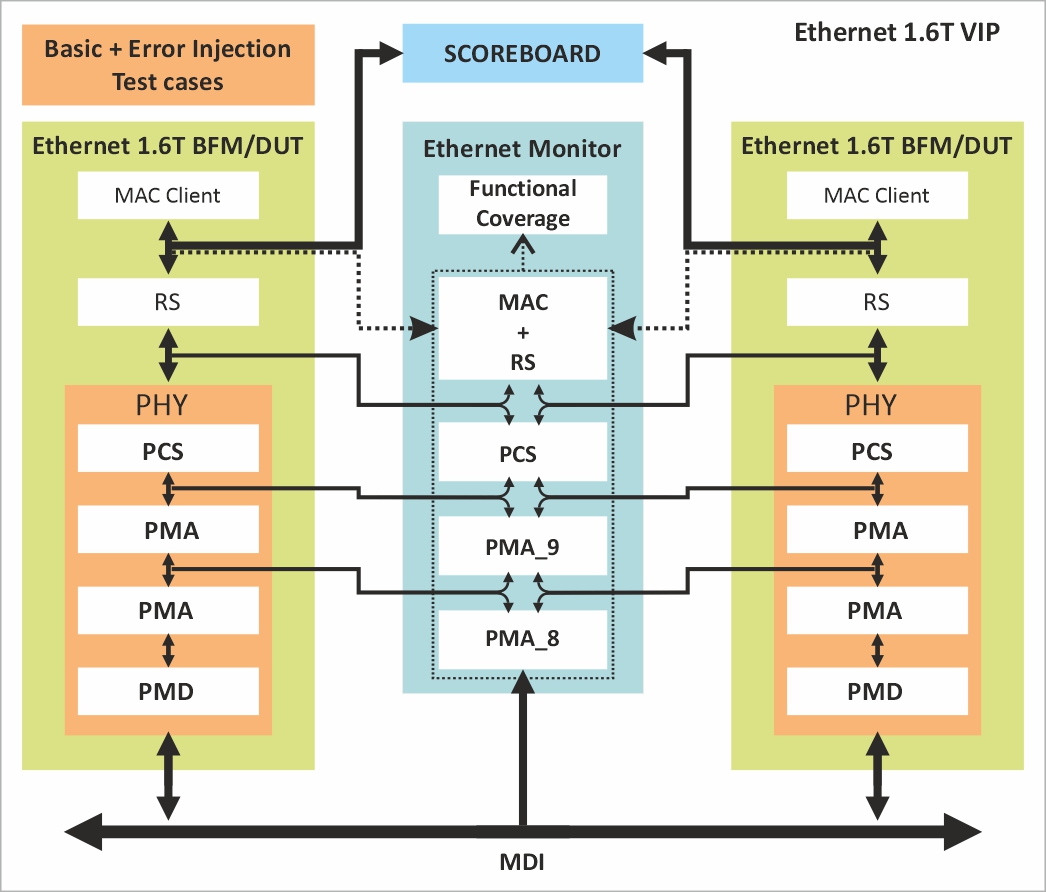

Deliverables

• Ethernet 1.6T BFM's for:
  • DLL Layer
  • Reconciliation Layer
  • PCS Layer
  • PMA Layers
  • PMD Layer
• Ethernet 1.6T Layered Monitors and Scoreboard
• Integration Guide, User Manual and Release Notes
• GUI analyser to view simulation packet flow
• Test Environment & Test Suite:
  • Basic and Directed Protocol Tests
  • Random Tests
  • Error Scenario Tests
  • Coverage Tests
  • User Test Suite
