TCP/TCPSW Verification IP

Truechip's TCP Verification IP provides an effective & efficient way to verify the components interfacing with TCP interface of an IP or SoC. Truechip's TCP VIP is fully compliant with RFC-9293 specification. This VIP is lightweight with an easy plug -and- play interface so that there is no hit on the design cycle time.

Key Benefits

• Available in native System Verilog (UVM/OVM/ VMM) and Verilog
• Unique development methodology to ensure the highest levels of quality
• Availability of Compliance & Regression Test Suites
• 24X5 customer support
• Unique and customizable licensing models
• Exhaustive set of assertions and coverage points with connectivity examples for all the components
• Consistency of interface, installation, operation, and documentation across all our VIPs
• Provide complete solutions and easy integration in IP and SoC environment

Features

• Provides Ethernet fully compliant to 802.3-2018 supporting all media independent interfaces for (1/10/25/40/50/100/200/400/800 G)
• Provides TCP as per RFC-9293 specification
  • Supports TCP connection establishment and closing connection
  • Supports TCP Flow Control
  • Supports Checksum Calculation and checksum error detection
  • Supports TCP Header creation and parsing
  • Supports Separation of TCP/nonTCP packets Encodes and decodes TCP headers
  • Supports unicast delivery of data
  • Bidirectional/unidirectional dataflow is supported over TCP connections
• Supports clock data recovery(CDR).
• Supports Ipv4, Ipv6 Pkts
• Supports test pattern generation and checking.
• Supports Management data Input/output registers.
• Supports full-duplex operation.
• Callback support in all Layers to provide user control.
• Rich set of configuration and parameters.
• Supports Dynamic as well as Static Error Injection scenarios.
• Built-in Coverage analysis. Ø Graphical analyzer to show transactions for easy debugging.

Deliverables

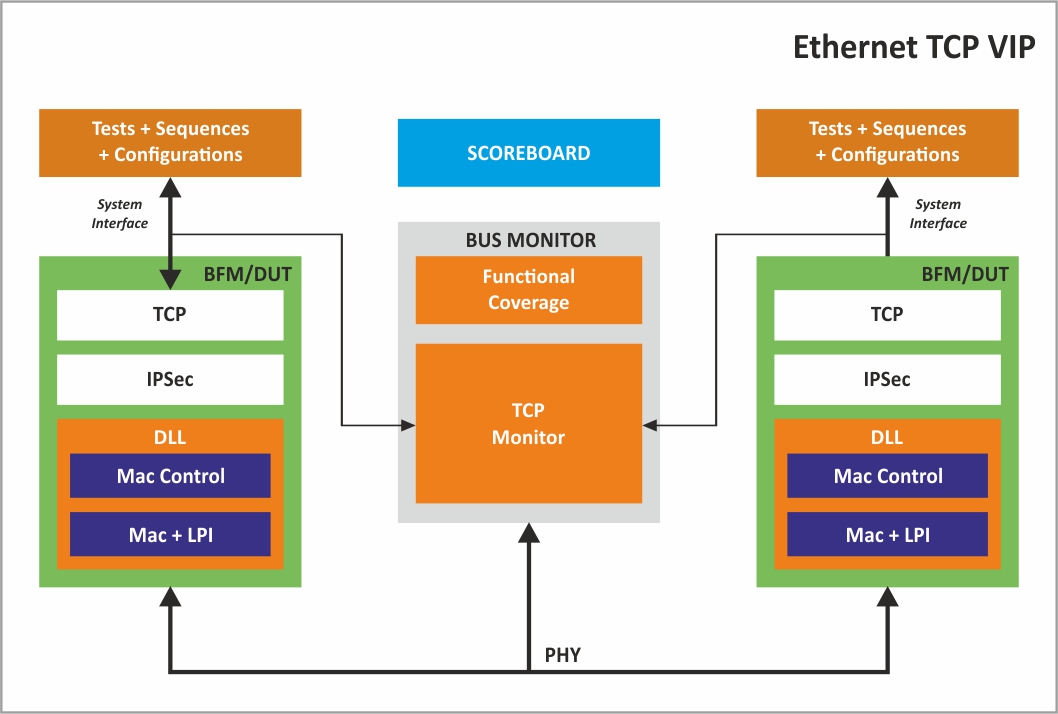

• Deliverables TCP BFM's for
  • TCP layer
  • IP layer (optional)
  • MAC layer (optional)
• TCP monitors and scoreboard
• Mac monitors and scoreboard (optional)
• Test environment and Test Suite-
  • Basic and Directed Protocol Tests
  • Random Tests
  • Error Scenario Tests
  • Assertions & Cover Point Tests
  • User Test Suite
• Integration Guide, User Manual, and Release Note
• GUI analyzer to view simulation packet Flow
