HDMI 2.1

HDMI 2.1 Verification IP

Truechip's HDMI Verification IP provides an effective & efficient way to verify the components interfacing with the HDMI interface of an ASIC/FPGA or SoC. Truechip's HDMI VIP is fully compliant with the HDMI 2.1 specification. This VIP is a lightweight VIP with an easy plug-and-play interface so that there is no hit on the design time and the simulation time.

Key Benefits

• Available in native System Verilog (UVM/OVM/VMM) and Verilog
• Unique development methodology to ensure the highest levels of quality
• Availability of Compliance & Regression Test Suites
• 24X5 customer support
• Unique and customisable licensing models
• Exhaustive set of assertions and coverage points with connectivity examples for all the components
• Consistency of interface, installation, operation, and documentation across all our VIPs
• Provide a complete solution and easy integration in an IP and SoC environment

Features

• Provides HDMI fully compliant with the HDMI 2.1 Specification and backward compatibility with previous HDMI versions.
• Support for HDCP2.2 with full authentication and key exchange
• Supports System Renewability Message (SRM) and revocation
• Encryption/Decryption of Video, Audio, and Data Island Packets
• Supports (VESA)DDC display data channel
• Support for HDCP2.2 bypass authentication.
• Supports resolutions up to 10K, including 4K @ 120Hz and 8K @ 60Hz.
• Supports SCDC (HDMI Status and Control Data Channel) Supports SCDC (HDMI Status and Control Data Channel)
• Supports up to 48 Gbps bandwidth
• Supports Fixed Rate Link (FRL)
• Supports 3 Lane FRL and 4 Lane FRL operation.
• FRL operation at 3 Gbps, 6 Gbps, 8 Gbps, 10 Gbps, and 12 Gbps
• Supports Fixed Rate Link Training with a fixed rate Link training pattern.
• Supports SCDC (HDMI Status and Control Data Channel)
• Supports all types of video formats, colour depths and pixel formats
• Supports multi-view, 10K/8K/4K/2K and all 3D video
• Supports 3D, one-bit, and multi-stream audio packets up to 32 channels.
• Supports HDMI CTS 2.1 compliance checks.
• Supports Display Stream Compression (DSC).
• Supports Quick Media Switching (QMS) & Quick Frame Transport (QFT).
• Supports Dynamic HDR & Variable Refresh Rate (VRR).
• Supports Enhanced Audio Return Channel (eARC)
• Supports the following Pixel encoding
  • YCbCr 4:2:0
  • YCbCr 4:4:4
  • YCbCr 4:2:2
  • RGB
• Supports the following operating modes
  • Control period
  • Video Period
  • Data Island Period
  • Scrambled control period
  • Unscrambled control period
• Supports CEA-861-G spec Video ID codes and HDMI VIC
• Supports 3D video resolutions.
• Supports RS-FEC with 3 Lane FRL and 4 Lane FRL.
• Scrambling LFSR and 16b/18b coding.
• Supports all types of packet formats
• Supports FRL 64b/66b encoding and TMDS coding.
• Supports scrambling and descrambling for all pixel rates
• Monitors are able to handle and report the following types of errors:
  • Invalid control character
  • Sync error
  • Ecc errors
  • Encoding error
  • Invalid Data character
• Supports dynamically configurable modes
• Strong Protocol Monitor with real-time exhaustive programmable checks
• Supports dynamic as well as static error injection scenarios
• On-the-fly protocol checking using protocol check functions, static and dynamic assertion
• Built-in coverage analysis
• Provides a comprehensive user API (callbacks) in Transmitter and Receiver
• Graphical analyser to show transactions for easy debugging

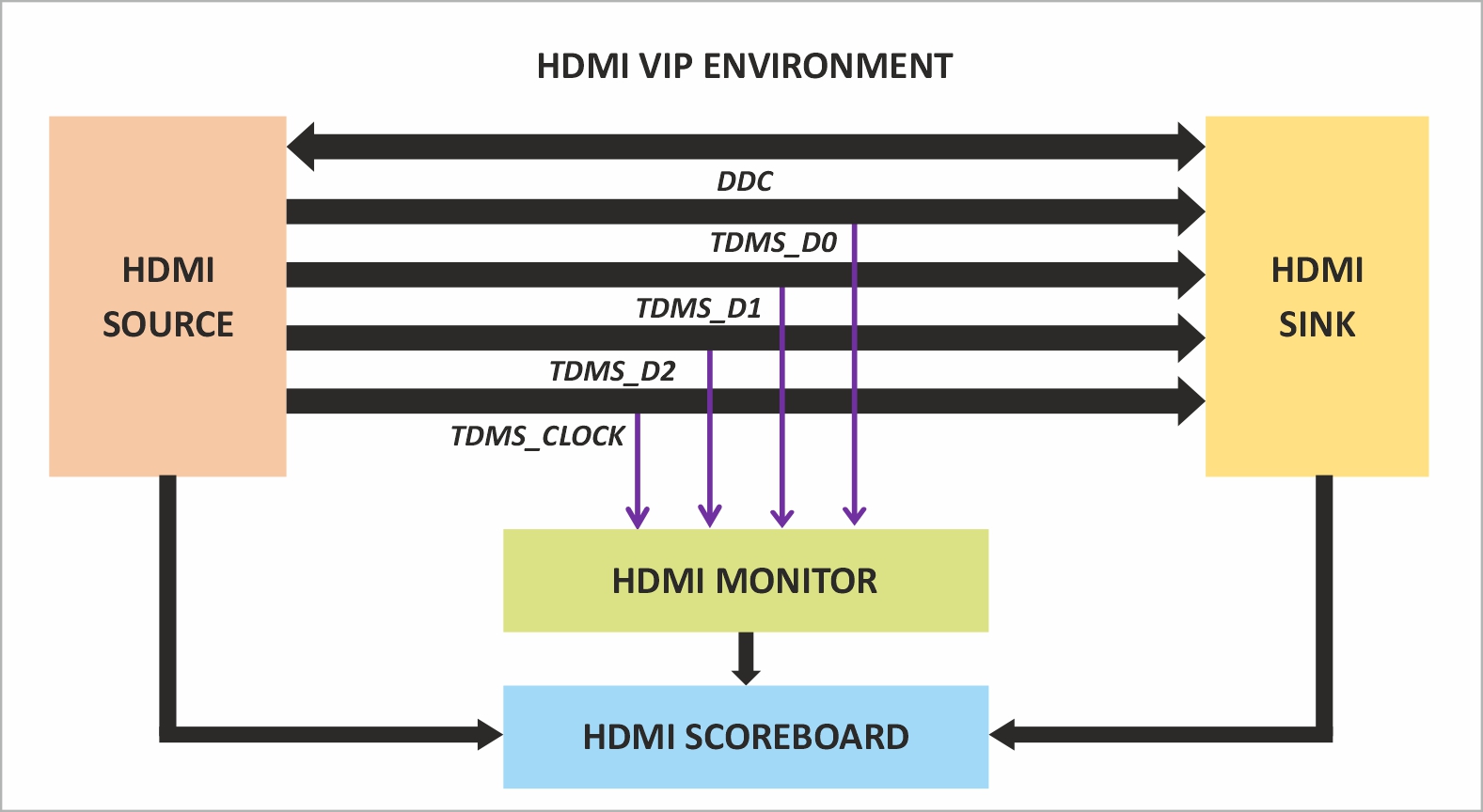

Deliverables

• HDMI Source
• HDMI Sink
• HDMI Monitor and Scoreboard
• Test-Bench Configuration
• Test Suite (Available in Source Code)
  • ​HDMI 2.1 Compliance test
  • Basic Protocol Tests
  • Directed & Random Tests
  • Assertion and Cover Point Tests
