eMMC

eMMC verification IP

Truechip's eMMC verification IP provides effective and efficient way to verify the component interfacing with Emmc interface of an ASIC / FPGA / SOC.

Truechip's eMMC verification IP is fully complied with standard Emmc version JESD84-B51 from JEDEC. This VIP is a Light Weight VIP with easy plug and play features.

Key Benefits

• Available in native System Verilog (UVM/OVM/VMM) and Verilog.
• Unique development methodology to ensure highest levels of quality.
• Availability of Compliance & Regression Test Suites.
• 24X5 customer support.
• Unique and customizable licensing models.
• Exhaustive set of assertions and coverage points with connectivity example for all the components.
• Consistency of interface, installation, operation and documentation across all our VIPs.
• Provide complete solution and easy integration in IP and SoC environment.

Features

• Compliant to JEDEC eMMC version JESD84 - B51.
• Supports eMMC devices from all leading vendors.
• Supports configuration for both host and device.
• Support all data widths 1x ,4x and 8x. and all speed modes (Low speed / High Speed).
• Support both Single and multiple block transfers.
• Supports Tuning and general purpose commands.
• Supports Lock and Unlock features and Block read and block write.
• Supports device density of Greater than equal to 2GB.
• Supports both Normal and alternate boot operation.
• Supports sleep modes , Reliable Write, Write Protection mechanism.
• Supports Multiple Partitions ( Boot area / user area / general purpose partion)
• Support for both SDR and DDR.
• Supports Data removal commands Erase / Trim / Santize / Discard, Secure Erase /TRIM.
• Supports RPMB ,Background operation and HPI.
• Supports High Speed Mode (HS200 and HS400).
• Supports Enhanced Partition Types and packed commands.
• Supports Extended Security Commands.
• Supports Enhanced Data Strobe and sleep mode.
• Supports Bus testing and partitioning features.
• Support byte and Block Mode Operations.
• Reports various timing errors, which can be used to check any timing violation.
• Provides full control to the user to enable / disable various types of messages.
• Supports dynamically configurable modes and constrained random testing.
• Strong protocol monitor with real time exhaustive programmable check.
• Supports Dynamic as well as static error injection scenario.
• Built in coverage analysis.
• Provides a comprohensive user API (call backs) in monitor ,host and device controller models /BFM.
• Graphical analyser to show transaction for easy debugging.

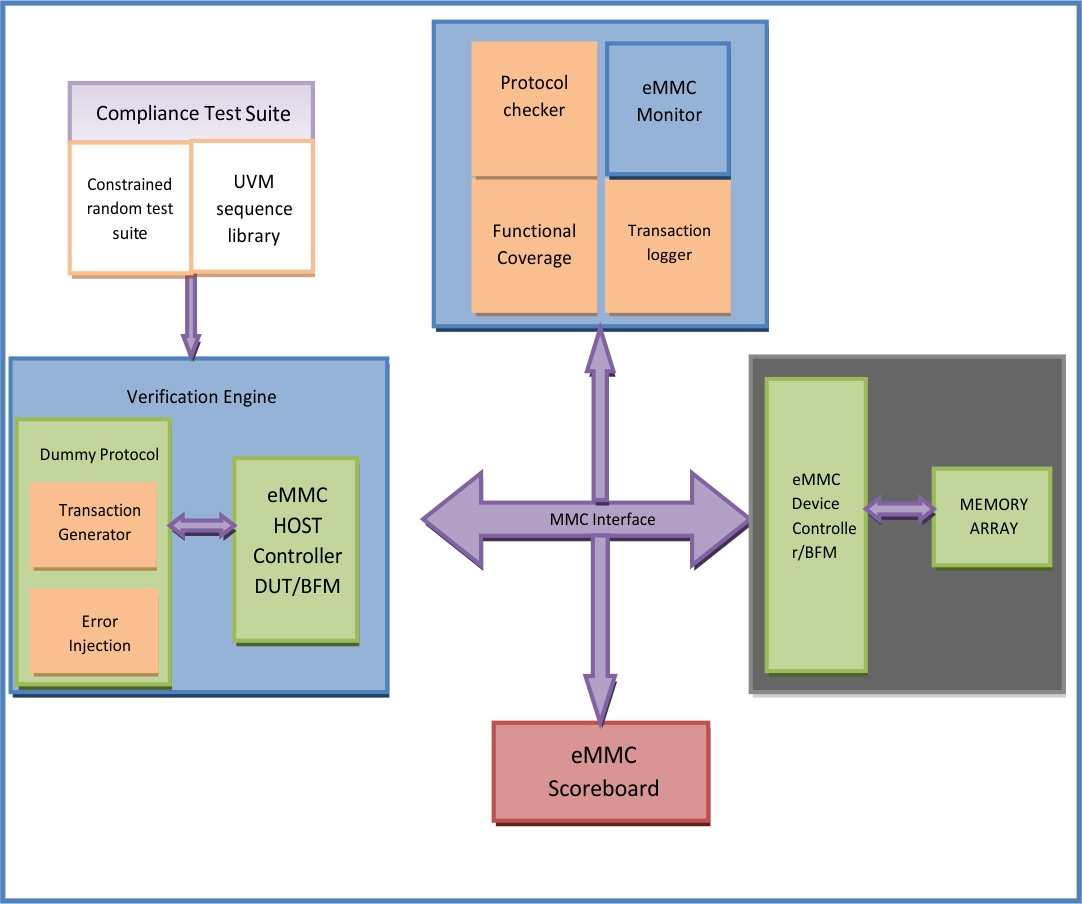

Deliverables

• eMMC Host controller BFM / Agent
• eMMC Device Controller / Memory BFM/DUT
• eMMC Monitor
• eMMC Scoreboard
• Test Bench Configurations
• Test suite available in source code
  • Basic Protocol test
  • Directed and random test
  • Assertion and cover point test
• Integration guide / User Manual /release notes
• GUI analyzer to view simulation packet flow
