ISO/IEC 7816 Verification IP

Truechip's ISO/IEC 7816 Verification IP offers a streamlined and efficient solution for verifying System-on-Chip (SoC) and IP designs that incorporate contactless communication. Truechip's ISO/IEC 7816 VIP is compliant with ISO/IEC 7816 Specifications. This VIP is light weight with easy plug-and- play interface so that there is no hit on the design cycle time.

Key Benefits

• Available in native SystemVerilog (UVM/OVM/VMM) and Verilog
• Unique development methodology to ensure highest level of quality
• Availability of Compliance & Regression Test Suites
• 24X5 customer support
• Unique and customizable licensing models
• Exhaustive set of assertions and cover points with connectivity example for all the components
• Consistency of interface, installation, operation and documentation across all our VIPs
•  Provide complete solution and easy integration in IP and SoC environment.

Features

• Fully compliant with ISO/IEC 7816 Specifications Supports IEC 7816-3 Device/Card functionality.
• Complete Smart Card commands supported.
• Supports adjustable clock rate and bit (baud) rate.
• Supports different card functions for full smart card session like-
  • Cold/Warm reset
  • ATR Generator and Parser
  • Card activation and deactivation
  • Data transfers to and from the card
• Commonly used communication protocols are supported like
  • T=0 for asynchronous half-duplex character transmission
  • T=1 for asynchronous half-duplex block transmission
• Supports PPS Handler and negotiation
• Supports Sleep mode and Clock stop mode.
• Supports ETU generator and configurable Clock Gen
• Supports UART Core for Tx/RX with Parity
• Supports automatic convention detection.
• Different timing configurations supported like
  • Smart card activation time
  • Guard time
  • Timeout timers
• Supports different types of error insertion and detection
• Supports both synchronous and asynchronous mode of communication.
• Supports Register based control interface
• Callback support to provide user control.
• Rich set of configurations and parameters.
• Supports Dynamic as well as Static Error Injection scenarios.
• On the fly protocol checking static and dynamic assertion.
• Built in Coverage analysis.
• Graphical analyzer to show transactions for easy debugging

Deliverables

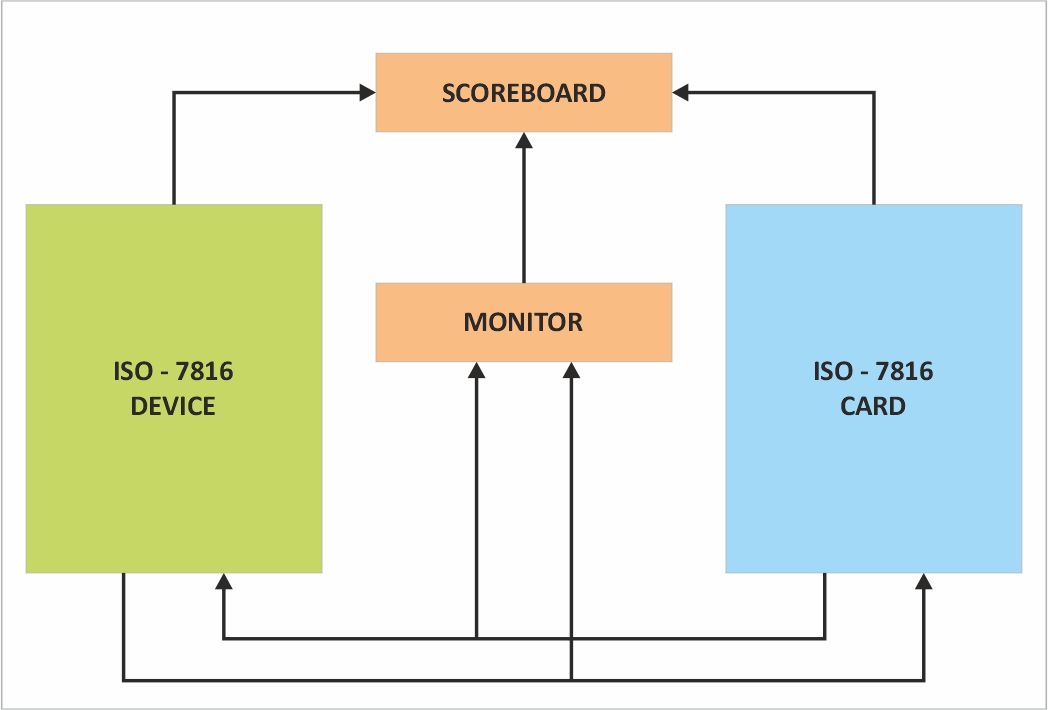

• Deliverables ISO 7816 BFM’s for
  • Device BFM
  • Card BFM
  • Timing Control BFM
• Monitors and scoreboard Test environment and Test Suite
  • Basic and Directed Protocol Tests
  • Random Tests- Error Scenario Tests
  • Assertions & Cover Point Tests
  • User Test Suite
• Integration Guide, User Manual and Release Note
• GUI analyser to view simulation packet Flow
