UALink 200G v1.0 Verification IP
Truechip's UALink 1.0 Verification IP provides an effective & efficient way to verify the components interfacing with the UALink interface of an ASIC/FPGA or SoC. Truechip's UALink VIP is fully compliant with the Standard UALink Version 1.0 specification from the UALink consortium. This VIP is a lightweight VIP with an easy plug-and-play interface, so that there is no hit on the design time and the simulation time.
Key Benefits
- Available in native System Verilog (UVM/OVM/ VMM) and Verilog
- Unique development methodology to ensure the highest levels of quality
- Availability of Compliance & Regression Test Suites
- 24X5 customer support
- Unique and customizable licensing models
- Exhaustive set of assertions and coverage points with connectivity example for all the components
- Consistency of interface, installation, operation, and documentation across all our VIPs
- Provide complete solution and easy integration in IP and SoC environment
Features
- Fully compliant with the UALink V1.0 specification from the UALink consortium
- Supports the UPLI interface operating in both Originator and Completer device modes.
- Supports all defined request types, including Read, Write, AtomicR, and AtomicNR operations.
- Supports a fully credit-based flow control mechanism for all request types.
- Supports Transaction Layer (TL) Tx and Rx address cache synchronization.
- Supports compressed and uncompressed request and response formats at the Transaction Layer (TL).
- Supports FLIT-to-64B/66B encoding functionality.
- Supports Tx pacing, Rx rate adaptation, DL message service, FLIT packing, and link-level replay features.
- The PHY Layer (PL) is compliant with IEEE 802.3dj Ethernet PHY specifications.
- Supports link widths: x1, x2, and x4.
- Supports all link speeds:
- 100G, 200G, and 400G with 100G per lane
- 200G, 400G, and 800G with 200G per lane.
- Supports 1-way, 2-way, and 4-way codeword interleave modes.
- Supports lane bifurcation, enabling a port to be divided into multiple independent UALinks.
- Supports on-the-fly link speed and link width changes within a single test.
- Supports AES-GCM encryption and authentication.
- Supports RS-FEC RS(544,514) codeword encoding and decoding as per the Ethernet PHY specification.
- Supports Auto-Negotiation and Link Training (AN/LT) as defined in IEEE 802.3, without modification.
- Callback support in BFM to provide user control
- Supports Dynamic as well as Static Error Injection scenarios Strong Protocol Monitor with real time exhaustive, programmable checks
- Supports dynamically configurable modes
- On-the-fly protocol checking using protocol check functions, static and dynamic assertions
- Built in Coverage analysis.
- Graphical analyzer to show transactions for easy debugging
Deliverables

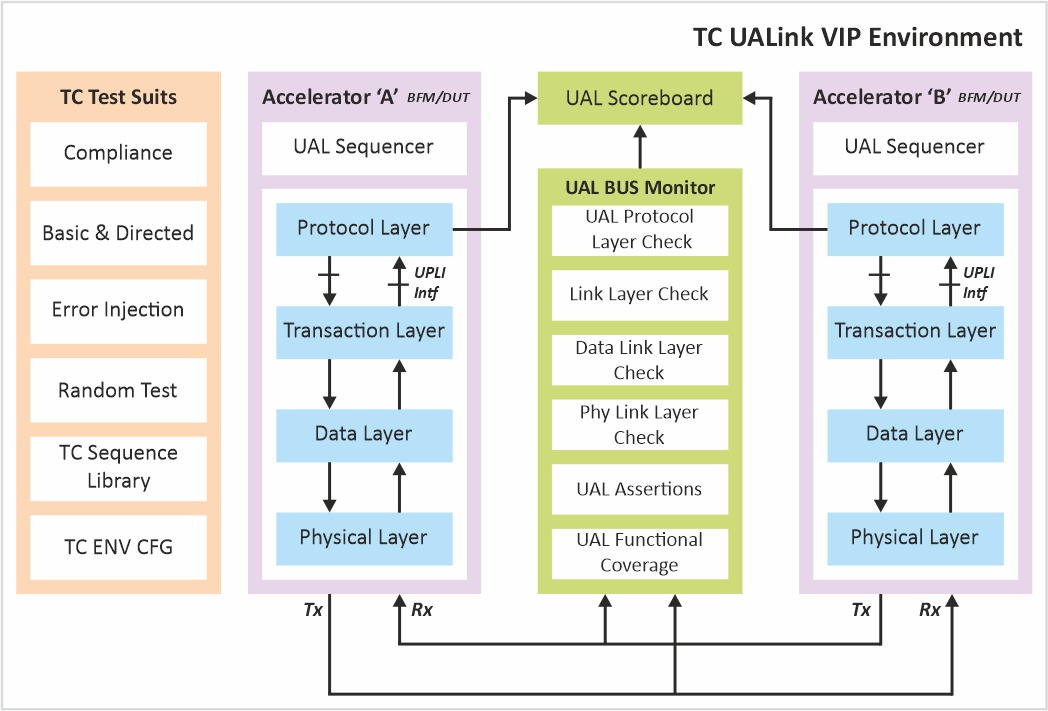

- UALink BFM's/Agents
- Protocol Layer
- Transaction Layer
- Data Link Layer
- Physical Layer
- UALink Switch devices
- UALink Layered Monitors and Scoreboard
- Integration Guide, User Manual and Release Notes
- GUI analyser to view simulation packet flow
- Test Environment & Test Suite:
- Basic and Directed Protocol Tests
- Random Tests
- Error Scenario Tests
- Coverage Tests
- User Test Suite
