eMMC v5.1a

Products >> Verification IP >> eMMC v5.1a

eMMC v5.1/A Verification IP

Truechip's eMMC 5.1/A verification IP provides an effective and efficient way to verify the component interfacing with the eMMC interface of an ASIC / FPGA / SoC. Truechip's eMMC verification IP fully complies with standard eMMC versions JESD84-B51 and JESD84-B51A from JEDEC. This VIP is a Light Weight VIP with easy plug-and-play features.

Key Benefits

  • Available in native System Verilog (UVM/OVM/VMM) and Verilog
  • Unique development methodology to ensure the highest levels of quality
  • Availability of various Regression Test Suites
  • 24X5 customer support
  • Unique and customizable licensing models
  • Exhaustive set of assertions and cover points with connectivity examples for all the components
  • Consistency of interface, installation, operation, and documentation across all our VIPs
  • Provide complete solutions and easy integration in IP and SoC environment


  • Compliant with JEDEC eMMC version JESD84 - B51 and JESD84 – B51A.
  • Supports eMMC devices from all leading vendors.
  • Supports configuration for both host and device.
  • Support all data widths 1x, 4x, and 8x.
  • Supports all speed modes ( Legacy Speed Mode and High-Speed Mode ).
  • Support both Single Block and Multiple Block transfers.
  • Supports Tuning.
  • Supports general-purpose commands.
  • Supports Lock / Unlock feature.
  • Supports Block Read and Block Write.
  • Supports device density Greater than or equal to 2GB ( Low Capacity and High Capacity ).
  • Supports both Normal Booting and Alternate Boot operation.
  • Supports Sleep Mode and Sleep Notification.
  • Supports Reliable Write feature.
  • Supports Write Protection Mechanism.
  • Supports Multiple Partitions ( Boot Area / User Area / General Purpose Partition ).
  • Supports Enhanced Partition Types.
  • Support for both SDR and DDR.
  • Supports Data Removal Commands Erase ( High Capacity ) / Trim / Sanitize / Discard.
  • Supports Secure Erase/TRIM.
  • Strong protocol monitor with a real-time exhaustive programmable check.
  • Supports Dynamic as well as static error injection scenarios.
  • Built in coverage analysis.
  • Graphical analyzer to show transactions for easy debugging.
  • Provides a comprehensive user API (callbacks) in all components and BFMs
  • Provide an Intention check for all the scenarios.
  • Supports all the setup/hold timing parameter checks compliant with the eMMC specification.
  • Supports Replay Protect Memory Block ( RPMB ).
  • Supports Background Operations.
  • Supports High Priority Interrupt.
  • Supports boot partition, boot operation, and boot partition write protection.
  • Supports device reset to pre-idle state.
  • Supports Secure Erase and Secure Trim.
  • Supports Sleep and Awake.
  • Supports Secure Write Protect Mode.
  • Supports Command Queuing.
  • Supports Enhanced Strobe in HS400 Mode.
  • Supports High-Speed Mode ( HS200, HS400 ).
  • Supports Application-Specific commands.
  • Supports Context Management.
  • Supports Data Tag Mechanism.
  • Supports Packed Commands.
  • Supports Dynamic Capacity Management.
  • Supports Power Off Notifications and Packed Commands.
  • Supports Extended Security Commands.
  • Supports Power Saving Mode.
  • Supports Field Firmware Update.
  • Supports Real Time Clock.
  • Supports all Device Statuses ( Switch Error, CSD/CID Error, Block Length Error, etc ).
  • Supports Cache ( Including Barrier and Flush Operation ).
  • Supports Production State Awareness.
  • Supports Hardware Resets and Software Reset ( CMD0 ).
  • Supports Sector Memory Organisation.
  • Supports all timing delay ranges.
  • Reports various timing errors, which can be used to check any timing violation.
  • Provides full control to the user to enable/disable various types of messages.
  • Supports advanced System Verilog features like constrained random testing.
  • Supports dynamically configurable modes.

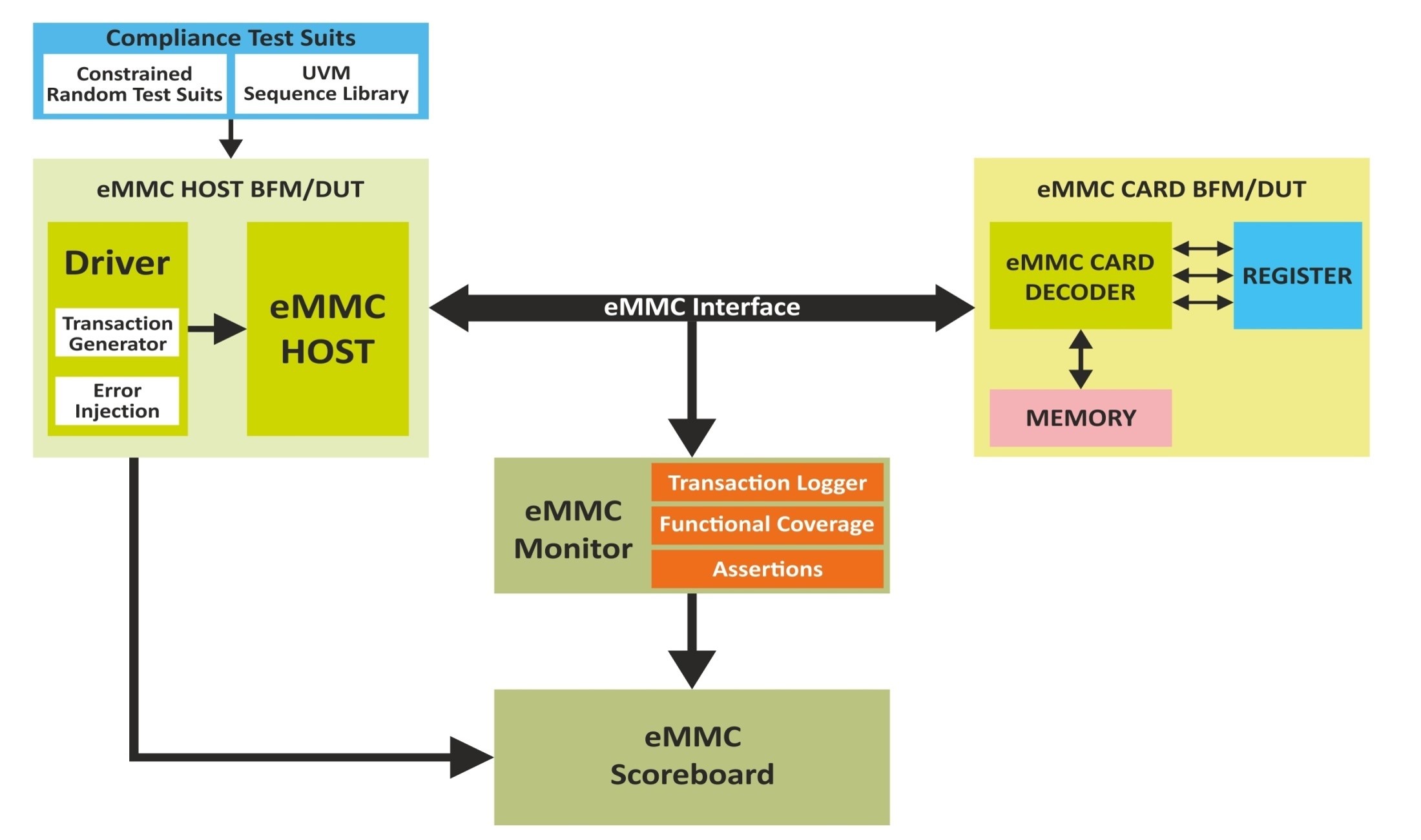

  • eMMC Host controller BFM / Agent
  • eMMC Device Controller / Memory BFM / DUT
  • eMMC Monitor
  • eMMC Scoreboard
  • Test Bench Configurations
  • Test suite available in source code:​
    • Basic Protocol Tests
    • Directed and random test
    • Assertions & Cover Point Tests
  • Integration guide / User Manual /release notes
  • GUI analyzer to view simulation packet flow
Download the Product Brochure from here
