RI5CY Verification IP
Truechip's RI5CY Verification IP provides an effective & efficient way to verify the components interfacing with RI5CY bus of a PULP microprocessor. It is fully compliant with standard RI5CY specification from Integrated Systems Lab, Inc. This VIP is a lightweight VIP with an easy plug-and-play interface so that there is no hit on the design cycle time.
Key Benefits
- Available in native SystemVerilog, UVM and Verilog
- Unique development methodology to ensure the highest levels of quality
- Availability of Compliance & Regression Test Suites
- Exhaustive set of assertions and cover points with connectivity example for all the components.
- Consistency of interface, installation, operation and documentation across all our VIPs
- 24X5 customer support
- Unique and customizable licensing models
Features
- Compliant to RI5CY specification for PULPmicroprocessor cores provided by Integrated Systems Lab, Inc.
- Supports all type of RI5CY agents: RI5CY Master and RI5CY Slave.
- Wide range of protocol checks.
- Slave Memory preload and checks.
- Bus assertions for all possible scenarios.
- Can also be used with data caches to boost read and write performance.
- Supports instruction interface and data interface.
- All parameter widths such as Read/Write Data, Address and Byte enable are configurable.
- Controllable gnt assertion with weighted constraints.
- Multiple modes for gnt signalling such as always high, wait for req etc.
- Supports Misaligned data access.
- Supports slave memory preloading via memory file.
- Support endianness checks and conversion.
- Supports UVM_RAL model.
- Provides detailed statistics for each transaction.
- Provides a comprehensive user API (callbacks) in all BFMs.
Deliverables

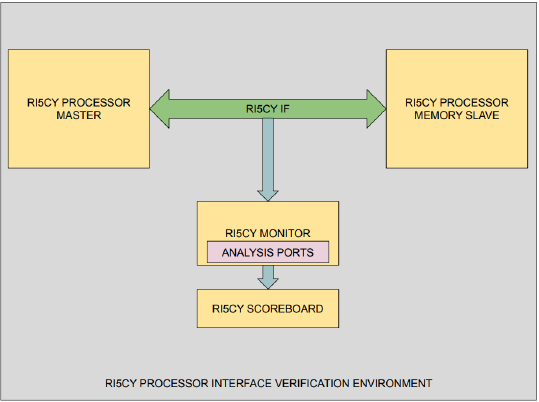

- RI5CY Master/Slave Agent.
- RI5CY Bus Monitor, assertion module and Scoreboard.
- Test Environment and Test Suite:
- Basic and directed protocol tests.
- Random Tests.
- Error Scenario Tests.
- Assertion and cover-point Tests
- Integration guide, User Manual, FAQ, and Release Notes.
